Custom Garage Epoxy Designs That Upgrade Protection and Style
The best custom garage epoxy designs pair a look you like with a coating system built for real garage use. Choose a full-flake floor to hide dust and tire marks, a solid color for a clean modern look, or metallic effects for a bold showroom finish. For Knoxville garages, the coating should also stand up to oil, road salt, moisture, hot tires, and everyday wear.
A professional system starts with concrete preparation, crack repair, and moisture checks. Then the installer applies a durable base coat, your chosen design layer, and a protective clear topcoat. Many residential projects take 2 to 3 days, with light foot traffic often possible about 24 hours after the final coat and vehicle traffic in 48 to 72 hours.
Your final cost depends on the slab’s condition, garage size, coating type, design details, and selected features. Garage Floor Masters offers a free on-site estimate so you can compare the right options for your space.
I’m Lev Golosov, and this guide will help you choose a fast-curing, durable garage floor design that fits how you use your garage.
Learn more about custom garage epoxy designs:
- UV resistant polyaspartic garage
- epoxy garage flooring 3D design Knoxville
- rapid cure polyaspartic floors
Exploring Popular Styles for Custom Garage Epoxy Designs
Upgrading your concrete floor is about more than just laying down a protective barrier; it is an opportunity to transform a dim, dusty utility room into a bright, functional extension of your living space. Modern coating systems offer incredible visual depth, superior light reflectivity, and complete design personalization. By reflecting ambient overhead lighting, high-gloss finishes make workspaces feel significantly larger and safer to navigate.
Every homeowner uses their space differently. Whether you are creating a professional-grade automotive workshop, a clean home gym, or simply a spotless parking area free of concrete dust, the design possibilities are virtually endless. You can browse our Flooring Gallery to see how diverse patterns and color palettes completely revolutionize residential spaces across East Tennessee.
Metallic and 3D Custom Garage Epoxy Designs
If you want a bold, high-end showroom aesthetic, metallic coatings provide unmatched artistic expression. These systems use specialized pearlescent and metallic pigments suspended in clear resin. During the pour, our installers manipulate the pigments using specialized techniques, allowing the colors to flow, swirl, and settle into organic, three-dimensional patterns that replicate natural marble, flowing water, or molten metal.
Because no two pours cure in the exact same pattern, every metallic installation is a one-of-a-kind original. You can explore how these intricate concepts come together in our Step by Step Guide to Epoxy Garage Flooring 3D Design Knoxville and visualize the finished look beforehand with our Definitive Guide to Epoxy Garage Flooring 3D Preview Knoxville.

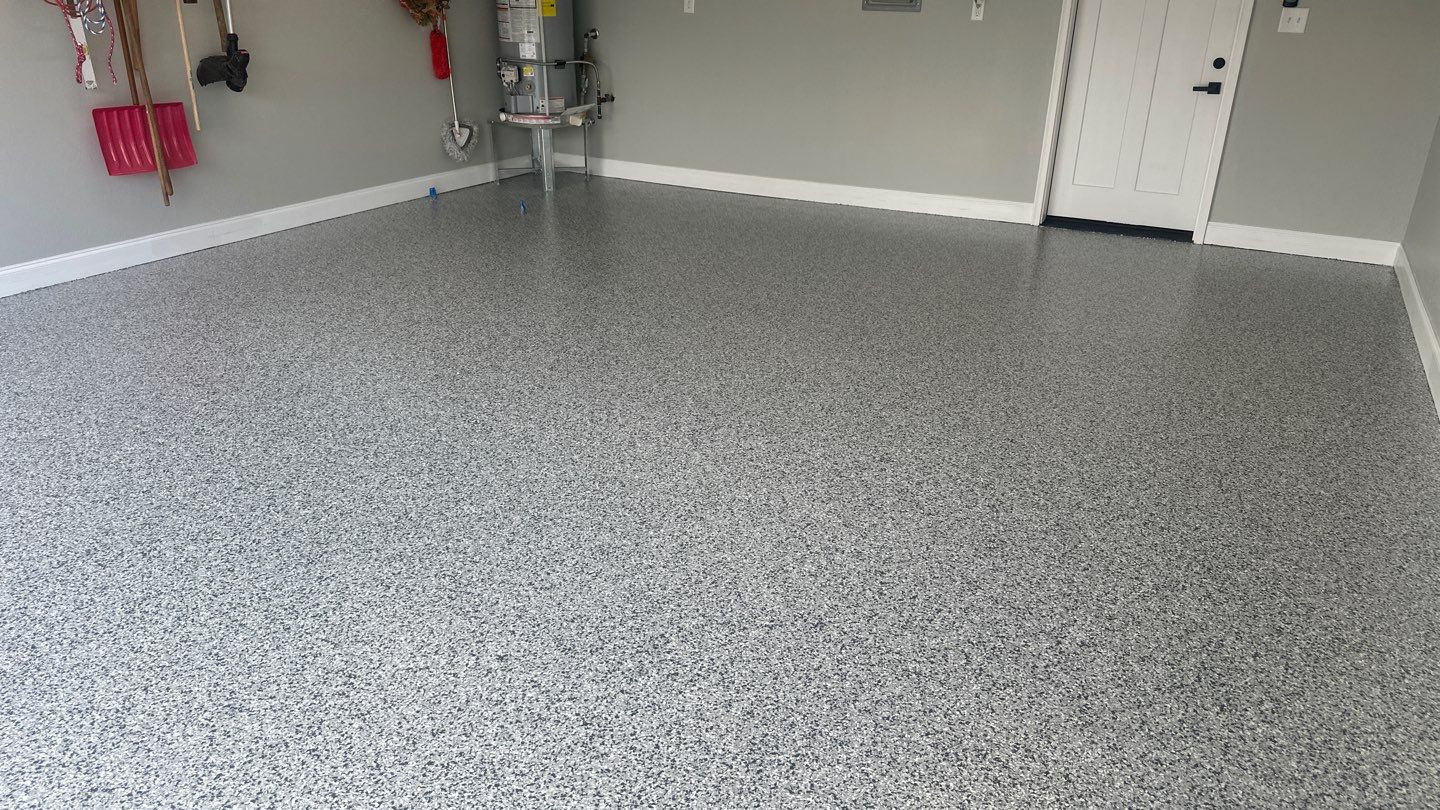

Choosing Flake Blends for Custom Garage Epoxy Designs
Decorative vinyl flake systems remain the most popular choice for active residential garages, and for good reason. A full broadcast flake floor involves broadcasting multi-colored vinyl chips into a wet base coat until the floor reaches complete rejection coverage. This creates a dense, textured mosaic that mimics natural granite or terrazzo.
Beyond its striking looks, flake flooring is remarkably practical. The multi-tone appearance naturally conceals surface dirt, tire dust, and minor debris between cleanings. Furthermore, the embedded chips provide built-in micro-texture, significantly enhancing slip resistance even when wet. Explore hundreds of curated color combinations through our Flake Colors catalog and learn more about multi-layer chip installations on our Chip and Flake Flooring page. If you love deep, modern contrast, be sure to check out Don’t Flake Out on These Black Flake Epoxy Floor Designs.
High-Gloss Solid and Geometric Patterns
For a crisp, minimalist look, high-gloss solid colors deliver a seamless, modern industrial finish. Solid coatings maximize light reflection, making them ideal for detailed mechanic work, woodworking, and home fitness studios.
If you want to add functional zones, solid systems can easily incorporate geometric accents:
- Dedicated Parking Pads: Define individual parking stalls with contrasting border colors.
- Walkway Markings: Create clear pathways from the garage entry to the interior home doorway.
- Checkerboard Accents: Integrate timeless racing aesthetics using two-tone squares.
Selecting the right color palette is key to balancing style with maintenance. Review our comprehensive guide on Garage Floor Coating Colors and discover the Best Colors for Garage Floors. For specific styling inspiration, see How to Pull Off a Stunning Black and White Epoxy Floor or read Indigo and Beyond How to Pick a Standout Garage Floor Color.
Comparing Coating Technologies: Epoxy, Polyurea, and Polyaspartic
Understanding the chemistry behind modern floor systems helps you select the right balance of durability, chemical resistance, and installation speed. While traditional epoxy has served the industry for decades, advanced polyurea and polyaspartic coatings have redefined performance standards.
At Garage Floor Masters, we offer both premium epoxy options and high-performance polyaspartic systems that are UV stable, four times stronger than traditional epoxy, installed in as little as one day, and available in over 140 colors.
Here is how the primary coating technologies compare:
| Performance Feature | Traditional Epoxy Systems | Pure Polyurea Systems | High-Performance Polyaspartic Systems |
|---|---|---|---|
| Tensile Strength & Flexibility | Moderate rigidity; prone to brittle micro-cracking | High flexibility; stretches with concrete movement | Extremely high flexibility; 4x stronger than standard epoxy |
| UV Stability | Low; yellows and chalks under direct sunlight exposure | High; stable against color fading | Maximum; 100% UV stable, non-yellowing clear coat |
| Cure Speed & Return to Service | 2 to 3 days for foot traffic; 48–72 hours for vehicles | Fast; same-day walkability | Ultra-fast; foot traffic in 4–6 hours, vehicles in 24 hours |
| Hot-Tire Pickup Resistance | Moderate; can delaminate under high-heat tire stress | High; excellent thermal resistance | Superior; will not soften or lift under hot radial tires |
| Chemical & Road Salt Resistance | Good; resists household spills and motor oils | Excellent; blocks harsh winter salts and moisture | Maximum; impermeable to fuels, brake fluid, and road brine |
| Solids Content (Professional) | 100% Solids | 100% Solids | 100% Solids |
While standard Epoxy Garage Floor Coatings provide a thick, leveling base that excels at filling minor substrate imperfections, advanced Polyaspartic Floor Coatings provide unmatched surface hardness, flexibility, and scratch resistance. For the ultimate resilient finish, many modern high-traffic garages utilize a hybrid system: a 100% solids epoxy moisture-mitigating primer base paired with a rapid-curing, UV-stable polyaspartic topcoat. Discover our complete line of residential and commercial Floor Coatings.

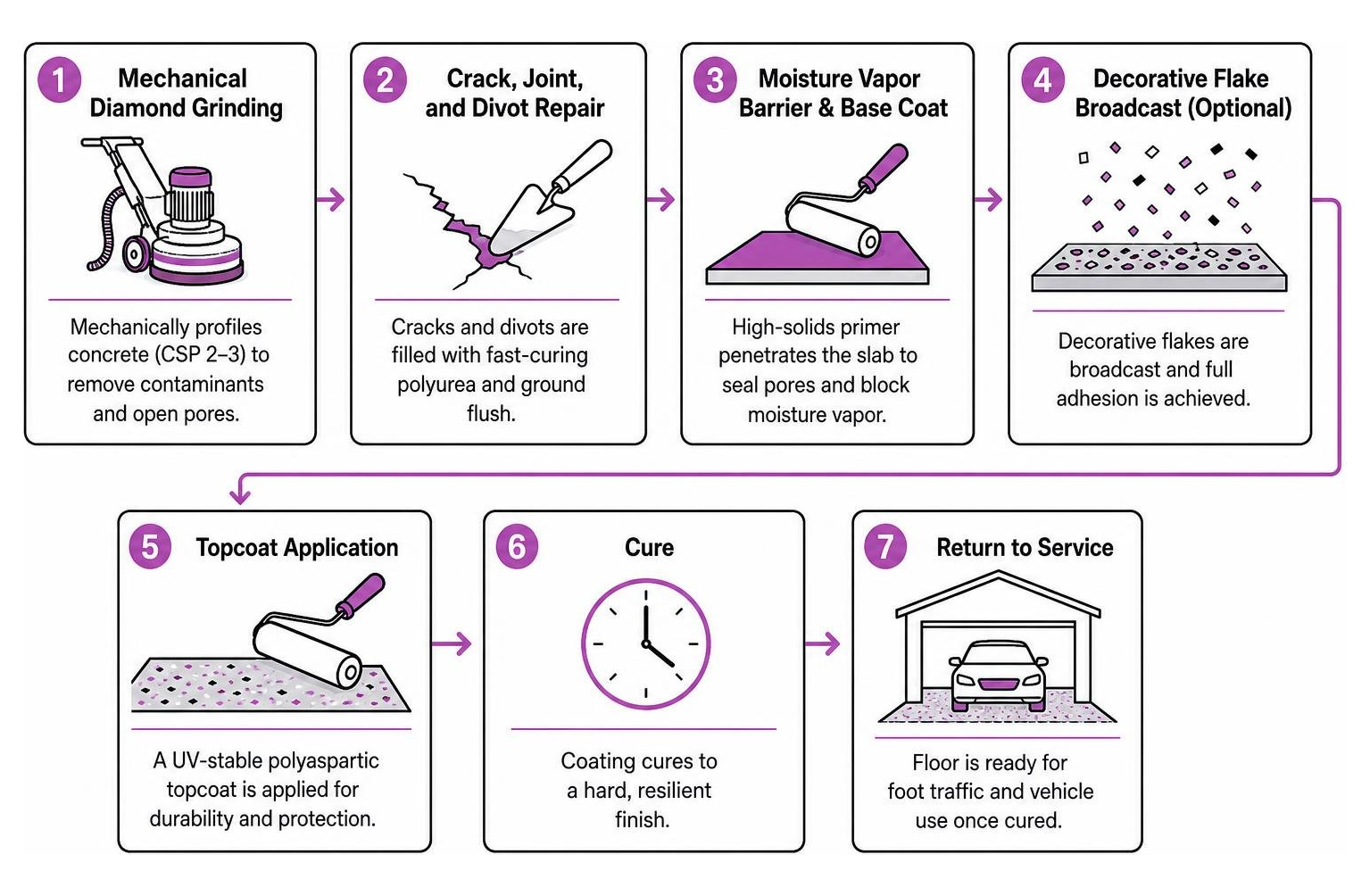

Step-by-Step Installation Process and Fast Curing Timelines
A lasting floor coating depends entirely on what happens beneath the visible surface. Applying top-tier polymers over poorly prepared concrete is a guaranteed recipe for premature peeling and blistering.
Our installation process follows strict industrial guidelines to guarantee a permanent mechanical bond:
- Mechanical Diamond Grinding: We never rely on acid etching, which merely dampens concrete and leaves behind unreacted chemical residues. Instead, we use heavy industrial rotary diamond grinders equipped with HEPA-filtered vacuum systems. This mechanically profiles the slab to an open Concrete Surface Profile (CSP 2–3), removing old sealers, paint, and contaminants while opening the concrete’s capillary pores.
- Crack, Joint, and Divot Repair: Every crack, spall, and pitted area is routed out and filled with fast-curing structural polyurea menders. Once cured, the repaired zones are ground flush with the surrounding concrete to create a seamless canvas.
- Moisture Vapor Barrier & Base Coat: We apply a high-solids primer that penetrates deep into the slab’s pores. This layer acts as a moisture vapor mitigation barrier, preventing hydrostatic ground pressure from forcing the coating off the concrete.
- Custom Design Broadcast or Pigment Application: For flake systems, we broadcast decorative vinyl chips to full rejection while the base coat is wet. For metallic finishes, dynamic pigments are poured and blended across the floor.
- Scraping and Vacuuming: Once the base coat cures, excess flakes are recovered, and the surface is scraped flat with steel blades to eliminate sharp edges while retaining subtle, slip-resistant texture.
- Protective Clear Topcoat: A heavy-duty, non-yellowing polyaspartic clear coat is squeegeed and back-rolled over the floor, locking in the design and sealing out moisture, fluids, and road salts.
To see real project transformations, visit our Garage Before After gallery, or learn more about our local services on our Epoxy Floor Coatings Knoxville Tennessee page.
Cost Breakdown and Value: Professional Systems vs. DIY Kits
When evaluating garage floor upgrades, homeowners often ask why professional systems require a larger initial investment than boxed retail DIY paint kits. The answer comes down to chemical composition, equipment capabilities, and expected lifespan.
Why DIY Kits Fail
Retail garage floor kits typically consist of water- or solvent-based epoxies containing only 40% to 50% solid resin. As the water evaporates during drying, the coating shrinks down to a paper-thin film. Combined with simple acid etching—which fails to properly profile hard-troweled concrete—these low-solids kits routinely suffer from hot-tire pickup, peeling, and flaking within just 2 to 3 years.
The Value of Professional Systems
Professional installations utilize commercial 100% solids resins that do not shrink as they cure, creating a thick, impact-resistant protective barrier that mechanical diamond grinding locks permanently into the concrete substrate. Under normal residential conditions, a professionally installed floor routinely lasts 10 to 20 years.
While typical professional epoxy installations range from $6 to $10 per square foot, the final cost of any custom floor depends on several variables:
- Condition of the Existing Concrete: Pitting, extensive crack networks, spalling, or previous peeling coatings require additional grinding and structural repair work.
- Moisture Vapor Levels: Slabs with elevated hydrostatic moisture require dedicated moisture-barrier primers to protect against coating delamination.
- Design Complexity: Solid colors, multi-color full flake broadcasts, and custom multi-tone metallic finishes have different labor and material requirements.
- Topcoat Selection: Upgrading to dual-coat polyaspartic clear finishes for maximum UV and scratch protection.
Because every slab is unique, we provide honest, transparent pricing based on the exact condition of your project and the features you choose. We offer a free, no-obligation on-site estimate to evaluate your concrete and walk you through every design option. Learn more about our regional services through Concrete Coating Knoxville Tennessee and Floor Coatings Knoxville Tennessee.
Frequently Asked Questions About Garage Floor Coatings
How long do professionally coated garage floors last?
A professionally installed system using 100% solids base coats, proper mechanical diamond grinding, and polyaspartic topcoats typically lasts 10 to 20 years in residential garages. The seamless surface prevents moisture, automotive fluids, and corrosive road salts from reaching the underlying concrete, preserving your slab’s structural integrity. Regular maintenance requires nothing more than routine sweeping and occasional mopping with a mild, pH-neutral cleaner.
Can coatings be installed over old or damaged concrete?
Yes. Professional floor coatings can easily be applied to older or damaged slabs, provided proper surface preparation is carried out. During our prep phase, we grind away surface contaminants, open the concrete pores, and use fast-setting commercial repair compounds to patch cracks, spalls, and divots flush with the floor. Even heavily worn, stained, or pitted slabs can be restored to showroom-quality condition.
How soon can vehicles drive on the new floor?
Curing timelines depend on the specific resin chemistry used. With traditional multi-day epoxy systems, light foot traffic is permitted after 24 hours, while vehicle traffic is safe after 48 to 72 hours. If you opt for our fast-curing polyaspartic coatings, the timeline accelerates significantly: you can walk on the floor within 4 to 6 hours and park your vehicles after just 24 hours.
Conclusion
Upgrading your garage with a high-performance coating is one of the smartest, most durable investments you can make for your home. It stops concrete dusting, seals out corrosive chemicals and road salts, improves interior lighting, and creates a clean, stylish room you will be proud to show off.
At Garage Floor Masters, we proudly serve homeowners across East Tennessee, including Knoxville, Oak Ridge, Crossville, Vonore, Sevierville, Lenoir City, Maryville, Tazewell, LaFollette, Loudon, Friendsville, Powell, Jefferson City, Pigeon Forge, Clinton, Andersonville, and White Pine.
Ready to upgrade your space? Contact us today to schedule your free on-site design consultation and estimate for premium garage floor coating in Knoxville TN.
